    5.8G 50W N-Connector RF Signal Jammer Module For Drone Factory Supply

    Ask Lasest Price
    Brand Name : TeXin
    Model Number : TEXIN-50W
    Certification : CE ISO
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 1000/month
    Delivery Time : 5-8 days
    • Product Details
    • Company Profile

    5.8G 50W N-Connector RF Signal Jammer Module For Drone Factory Supply

    Factory supply 5.8G50W N-Connector RF signal jammer module for drone

    The 5.8GHz 50W original was produced by Shenzhen Texin of China and the biggest different from other supplies is that the 50W drone jammer module takes N-male.T he N-male connector supports high power connection when in a high-power device it will not be damaged by high temp.

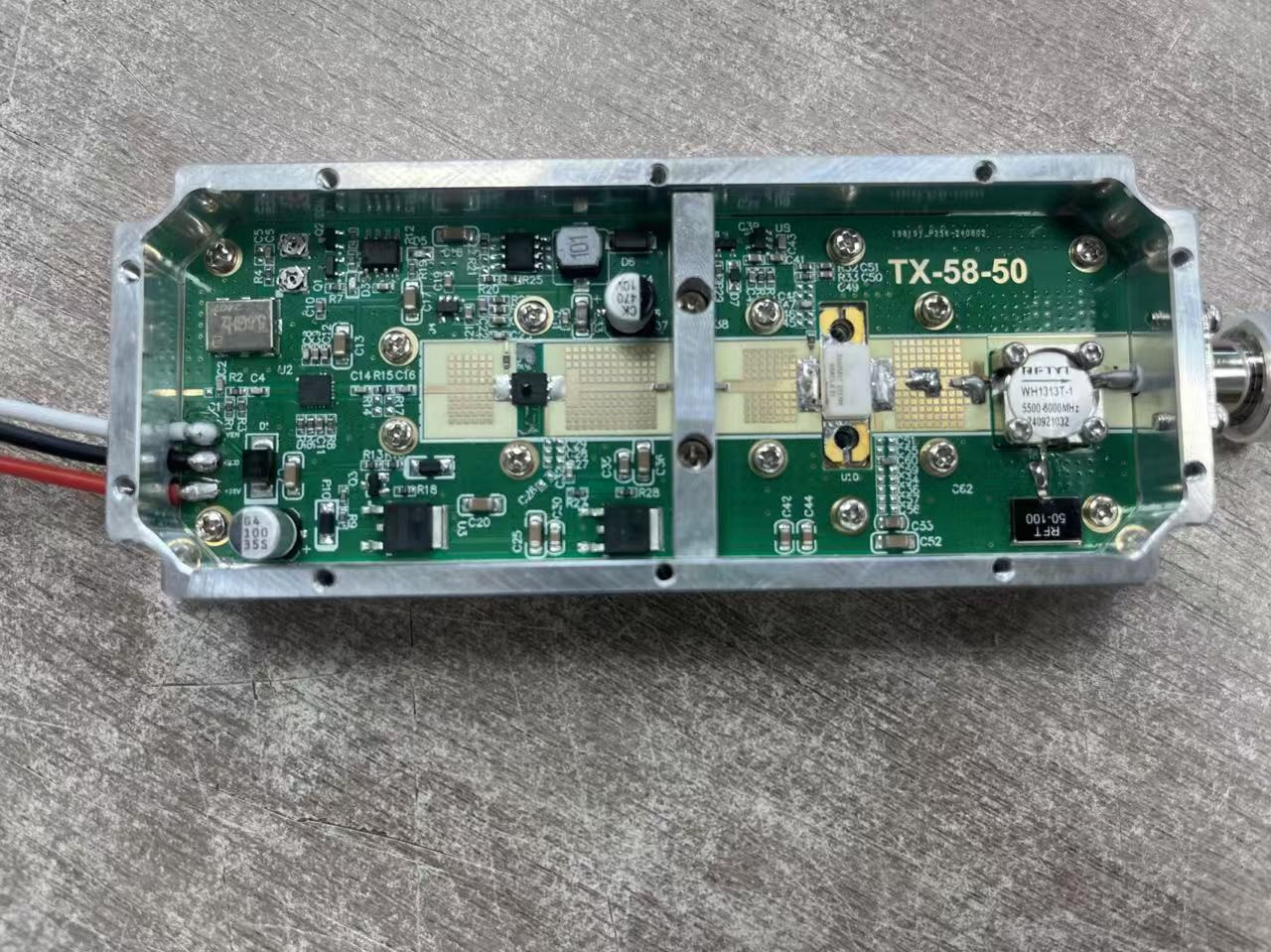

    The 5.8G 50W signal jammer module has ca circular designed, which is protection for the module. Taking an extra thick aluminum nutshell makes the jammer module good heat dissipation effect.

    The 5.8G 50W Circulator anti-drone jammer module brings convenience to our daillivesfe, It can be used in schools, government, city centers airports, and entertainment Venues. It is highly efficient to protect our safety.


    5.8G 50W N-Connector RF Signal Jammer Module For Drone Factory Supply


    No.ItemDataUnit
    1Frequency5800MHz
    2Test voltage28V
    3Current4.2A
    4Output50W
    5Gain47dB
    6Output stability1dB
    7ConnectorN / male
    8Output connector VSWR≤1.30 (No power and VNA test)
    9Power supply wireRed+Black+Enable wire
    10Enable ControlHigh ON Low Off
    11Out shell Size150*53*20mmmm
    12Mount hole48*126mm
    13Weight316g
    14Work Temperature-40~+65
    15Out shell materialAluminum
    16Vibration needCarloadd OK

    5.8G 50W N-Connector RF Signal Jammer Module For Drone Factory Supply

    Product features:

    *Support customized frequency 400-6000MHz

    * Using good quality chips and VCO

    *Fix hole designed anti-shockedananti-fall

    *Circulator build-in from protection to jammer module

    *Lightweight and small size easy to carry

    *The module support 24V-28V operate voltage

    Attention:

    • Power supply better carry about 28V 6.3A when itself 4.2A for its stable work
    • .Heat dissipation measuresares necessary including the thermal glue, suitablsize heatat sink, and cooling fans.
    • Antenna or Load must be firstly connected before the power supply is ON or it will be short wir.e
