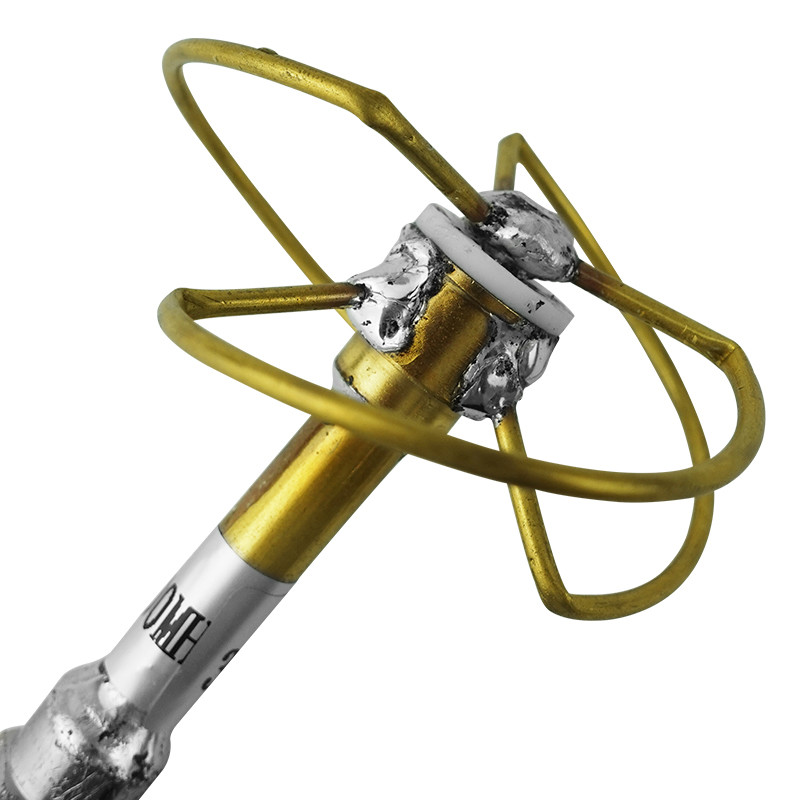

Three-leaf Clover Omni Antenna 3500-3700MHz Anti-jamming

The three-leaf clover omni antenna 3500-3700MHz anti-jamming is designed by TX; this antenna has powerful transmission and jammer functions. The three-leaf clover antenna is a high-performance anti-jamming antenna designed specifically for the 3500-3700 MHz frequency range. With its unique design and advanced technology, it offers exceptional signal reception and interference rejection capabilities.

By changing the phase and amplitude of antenna elements, array antennas can create specific beam directions. This makes it easier to receive useful signals and blocks interference signals. Diversity antennas can receive signals from multiple different paths.

Three-leaf Clover Omni Antenna 3500-3700 MHz Anti-jamming specification

█电气参数Electrical Specifications
频率范围FrequencyRange	3500-3700 MHz
增益Gain(dBi)	3±0.5dBi
驻波比VSWR	≤1.5
极化方式Polarization	垂直vertical
水平波瓣宽度Horizontal Beamwidth(0º) 垂直波瓣宽度Vertical Beamwidth(0º)	360º 55±5º
不圆度ovality(dB)	≤±2dB
输入阻抗Input Impedance(Ω)	50Ω
最大功率Maximum input power(W)	50W
接头类型 Inpur connector type	SMA内螺纹内针
█机械参数Mechanical Specifications
天线尺寸Dimensions­mm(Height/Width/Depth)	ɸ93*19mm
天线重量Antenna weight(kg)	0.61KG
天线罩颜色Radome Color	黄色yellow
工作温度Operating temperature(ºC)	-40～80 º
固定方式Installution Method	螺纹对接 Threaded docking
