    High Gain Butterfly Antenna The Ultimate Choice for High-Performance Wireless Communication

    Ask Lasest Price
    Brand Name : TeXin
    Certification : CE ISO
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 1000/month
    Delivery Time : 5-8 days
    • Product Details
    • Company Profile

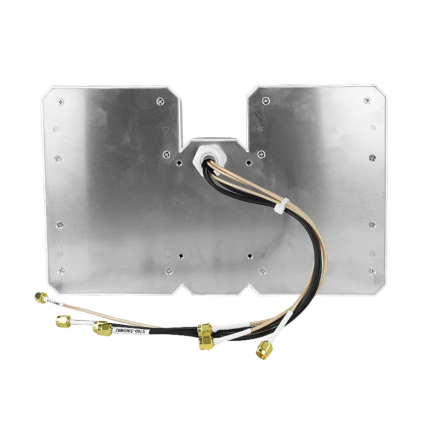

    High Gain Butterfly Antenna The Ultimate Choice for High-Performance Wireless Communication

    The Butterfly antenna is a unique and high-performance antenna designed to meet the diverse needs of wireless communication. With its distinctive design and excellent performance characteristics, it has become a popular choice in various applications. Tx as a professional module manufacturer, you can rest assured to buy module from our factory and we will offer you the best after-sale service and timely delivery.


    Specification


    Electrical Specifications
    FrequencyRange860-930/1160-1280/1560-1620/2400-2500/5150-5350/5700-5900MHz
    Gain(dBi)

    860-930MHz 5dbi

    1160-1280MHz 8dbi

    1560-1620MHZ 8dbi

    2400-2500MHz 12dbi

    5150-5350MHz 12dbi

    5700-5900MHz 15dbi

    VSWR≤2
    Polarization

    860-930MHz V

    1160-1280MHz V

    1560-1620MHZ V

    2400-2500MHz V

    5150-5350MHz H

    5700-5900MHz V

    Horizontal Beamwidth(0º)65±5º
    Vertical Beamwidth(0º)

    860-930MHz 65±5º

    1160-1280MHz 65±5º

    1560-1620MHZ 65±5º

    2400-2500MHz 45±5º

    5150-5350MHz 28±5º

    5700-5900MHz 28±5º

    Front-to-back ratio(dB)≥18
    Electrical lower inclination(0º)
    Input Impedance(Ω)50Ω
    Maximum input power(W)50W
    Input connector type086 cable with 6*SMS-J
    Lightning ProtectionDC Ground
    Mechanical Specifications
    Dimensions­mm(Height/Width/Depth)300*180*132mm
    Antenna weight(kg)0.35kg
    Operational Humidity(%)10- 95
    Radome Colororiginal color
    Operating temperature(ºC)-30~70 º
    Installation MethodMachine installation

    FAQ

    1.Are you a manufacturer?
    Yes, our factory locates in LongGang District, Shenzhen, welecom to visit us here
    2.MOQ?
    1 to 100pcs
    3.Payment term?
    T/T, Alibaba Trade Assurance(Visa, Mastercard, E-checking,etc), WestUnion, Paypal, etc
    4.How to proceed an order ?
    A.Let us know your requirement and product application through inquiry on Alibaba website B.We quote according to your specific need C.Customers agree with the quotation and make the payment
    5.How to do if I receive defective products?
    Our strict quality control will ensure 100% pass rate. But it can be damaged in the way. Please kindly share the defective product photo or video to let us know where the problem is. We will make the compensation accordingly or send you new electronic part or product.
