    Wide Band S Connector 50W With Circle Protection Jammer Module For Drone Jammer

    Ask Lasest Price
    Brand Name : Texin
    Model Number : TEXIN-50W
    Price : US$100-110/pieces
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 10000per month
    Delivery Time : 5-8
    • Product Details
    • Company Profile

    Wide Band S Connector 50W With Circle Protection Jammer Module For Drone Jammer

    Wide band S connector 50W with circle protection jammer module for drone jammer

    product Introduction

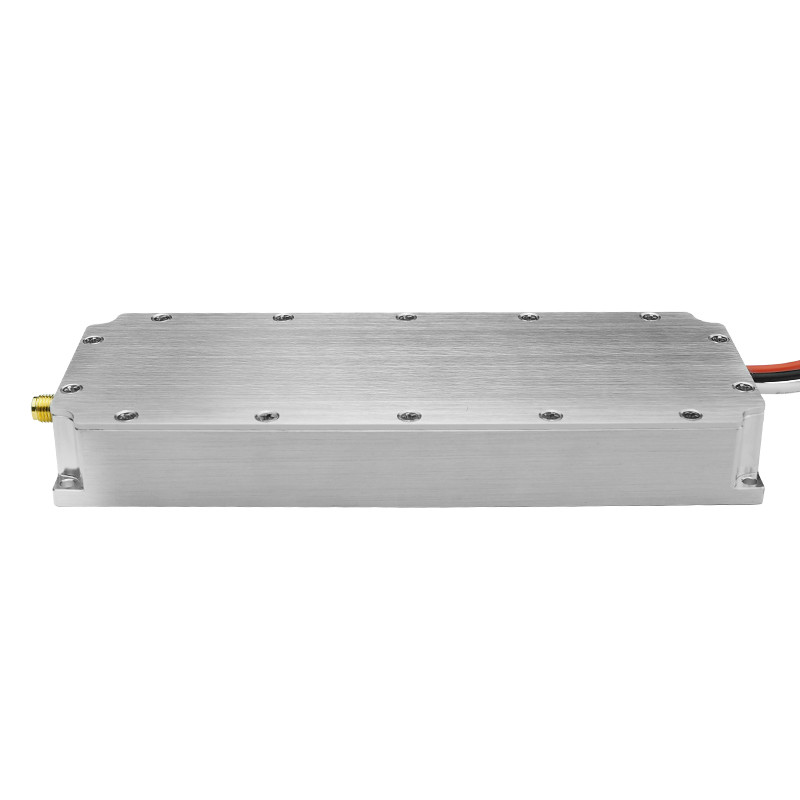

    This 50W -70W wide band RF frequency drone signal module is a hot sale by TEXIN,it outshell 54mm weight 305g ,taking advance technology chips manage when under 28v voltage the output current reach 4.2A that is high efficiency .And the module inner designed circle protection which is high heat dispersion when it connect high power jammer device .Circle protection module high performance cost ratio and multi protect to jammer module .

    Specification


    No.ItemDataUnit
    1Frequency400-2700MHz
    2Test voltage28V
    3Current4.2A
    4Output50W
    5Gain47dB
    6Output stability1dB
    7ConnectorSMA / Female
    8Output connector VSWR≤1.30 (No power and VNA test)
    9Power supply wireRed+Black+Enable wire
    10Enable ControlHigh ON Low Off
    11Out shell Size145*54*20mmmm
    12Mount hole51*137mm
    13Weight305g
    14Work Temperature-40~+65
    15Out shell materialAluminum
    16Vibration needCar load OK

    Wide Band S Connector 50W With Circle Protection Jammer Module For Drone Jammer
    Wide Band S Connector 50W With Circle Protection Jammer Module For Drone Jammer

    Wide Band S Connector 50W With Circle Protection Jammer Module For Drone Jammer

    Features

    • 400-2700mhz RF frequency offered
    • 50w-70W out put low consumption
    • Aluminium shell waterproof and good heat dissipation
    • Industrial grade chips are used more efficiency to use
    • Circle protection inside

    • Advance technology designed and wide range to use

    Attention

    • Use it before need test
    • when you connect power supply must related antenna
    • when you installed seperate close band module
    • when the out put power over high must matching cooling device

    ​FAQ

    Are you a anti drone module and jammer manufacturer?

    Shenzhen TeXin Electronic Co., Ltd. is over 10 year history in China, we self develop and produce the high tech and professional anti drone module,anti drone signal jammer and the drone detector, we offer the antenna, heat sink, power supply too.

    What is the customized frequency range and output power of the anti drone jammer module?

    TeXin anti drone module is usually 5W to 300W output customized with frequency range 100MHz to 6300MHz, and the usual band width is about 200MHz, for example, 2300-2500MHz; we can customize them according to customer specific need if not in those range.

    Can you show us the test photo and video of the FPV jammer module after we buy them?

    yes, TeXin will take the photo and video of sample and mass production assembly and test before delivery as customer need.
