High Gain Multiple Band 433-5900 Mhz PCB Antenna with 50W Maximum Input Power

Ask Lasest Price
Brand Name :	Texin
Model Number :	PCB 7
Price :	Negotiatory
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	1000per month
Delivery Time :	5-8

Add to Cart

Product Details
Company Profile

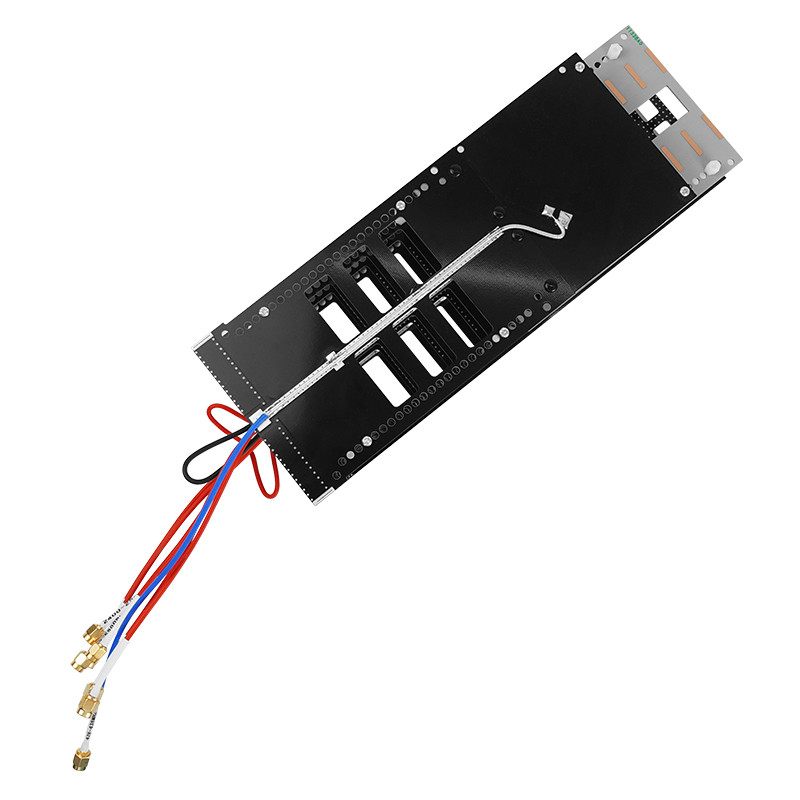

High Gain Multiple Band 433-5900 Mhz PCB Antenna with 50W Maximum Input Power

product desciption

This directional antenna special designed for drone jammer ,it itegrated 7bands ,Customers can choose different band depends on real environment.The product use PBC material that thermal conductivity enhanced.when operating the PBC antenna will not damge .The jammer signal transmit effectively.The band from 433mhz to 5800mhz is customized .

High Gain Multiple Band 433-5900 Mhz PCB Antenna with 50W Maximum Input Power

product sepcification

Performance Parameter
Type	Frequency (Customized)	Gain	VSWR	Horizontal Beam width	Vertical Beam width

433MHz	428-438 MHz	1 dBi	≤1.5	75-90º	68-80º
900MHz	803-930 MHz	5 dBi		72-88º	57-74º
1.2G	1160-1280 MHz	8 dBi		62-75º	55-68º
1.4/1.5/1.6G	1160-1620 MHz	8 dBi		55-75º	52-68º
2.4G	2400-2500 MHz	16 dBi		48-58º	27-38º
5.2G	5100-5350 MHz	17 dBi		35-45º	27-38º
5.8G	5700-5900 MHz	17 dBi		35-45º	27-38º

Front-to-back ratio		≥18 dB
Input Impedance		50Ω
Maximum input		50W
Input connector type		086 cable 7pcs*SMS-J

Mechanical Parameter

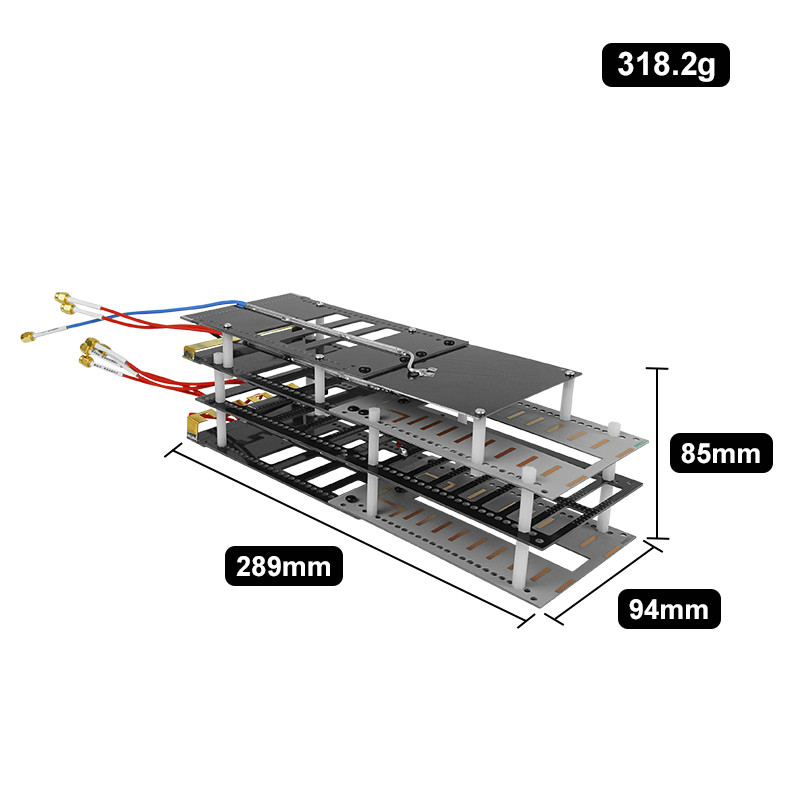

Dimension(LWH)		28497.560mm
Antenna weight(kg)		160g
Work Humidity(％)		10%- 95%
Surface Color		Black & grey color
Work temperature(ºC)		-40～65 º

High Gain Multiple Band 433-5900 Mhz PCB Antenna with 50W Maximum Input Power

Product advantages

PBC material makes signal emit more efficient
7bands integrated one product that multi function
weight 166g is easily to carry
high gain 17 dbi
widely use in drone jammer
