Outdoor 360 Degree UAV jamming system
(2.4G 5.8G Version)
TX-JZ01 protect a
n important area from drone UAV attack in 3000 meter radius range.
When drones enter the area, it will be out of ground control, stop
reconnaissance and return home.
(If add/press GPS, then the jammer can force the drone to land.)
Application Area
. Government: Prison, Military, Police, Border Control, Government
Buildings, Detention Centre, Drug rehabilitation centers, Other Law
enforcement
. Critical Infrastructure: Chemical Industry,Oil Depot,Oil Refinery,
Gas Station Power generate plants,Nuclear power plants,Water
control center, Reservoir
. Mass Event: Sports Stadium&Events, Important Meetings,
Entertainment Performance
. Museums, Campus,Theatre,Church,Hospital
. Scientific research center,Security Service,Test Facilities
Feature
1. High power shield drone in 3000 meter radius
(depends on real environment)
2. On/off control for each channel
3. Channel frequency&quantity is customized from 2 to 8 channel
4. PLL synthesized signal source and Separate module configuration
for easy control and maintenance
5. IP55 aluminum alloy cabinet: be waterproof, dust proof
heat-resistant shockproof, anti-corrosion

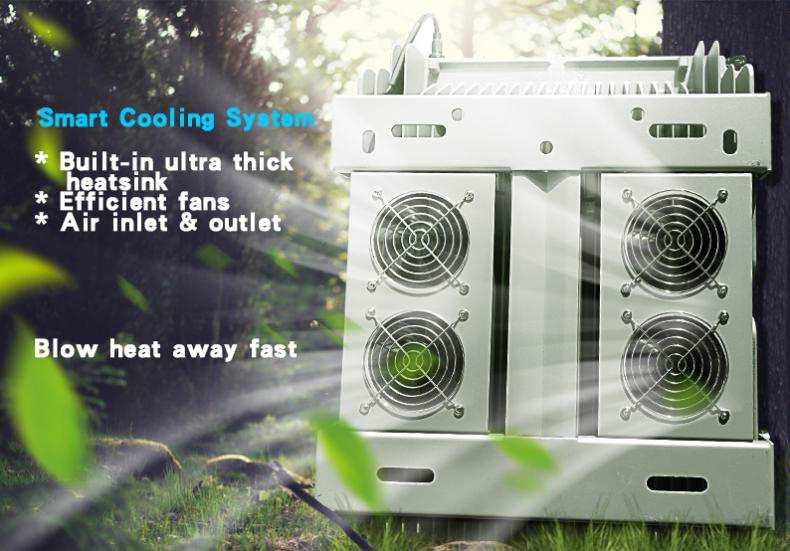

6. Smart cooling system with built-in ultra thick heat sink
large fans and air inlet&outlet, to ensure the machine long
time stable work
7. Long time operation 24/7 all day all weather
8. High gain directional antenna 15dBi 4pcs
help 360 degree coverage no blind corner
9. HuaWei Thunder Protection Box
10. VSWR Protection
11. Can have Ethernet/LAN remote control with extra cost
| UAV Defense System -Cabinet Specification |
Shield Frequency Range
* UAV remote control signal
* Reconnaissance data
transmission signal | Band1: Wi-Fi 2.4GHz : 2400-2500 MHz |
| Band2: Wi-Fi 5.8GHz : 5725-5850 MHz |
| Customized |
| Jamming Technique | Radio Frequency Sweep Jamming |
| Electric Field | Compatible with Icnirp Standard |
| Farthest Shield Range | 3000 meter radius, depends on real environment |
| Remote Control Connection | RJ45 or RJ485 (extra cost ) |
| Working Time | 24 hours 7 days continuously |
| Water&Dust Proof Level | IP55 level |
| Out shell Material | Aluminum Alloy |
| Product Size | 50*45*23cm |
| Product Weight | 35kg |
| Output Power | 280 W |
| Power consumption | 380 W |
| Power supply | AC Adapter 110-220V |
| Working temperature | -20 ° ~ +85 ° |
| Relative humidity | 35～85% |
| Installation | Wall Mount or Pole Holding |
| Suggest Installation Height | 3-15m |
| |
| High Gain Directional Antenna - Specifiation |
| Dimensionsmm(Height/Width/Depth) | 1200*420*125mm |
| Packing size(mm) | 1300*550*200mm |
| Antenna weight(kg) | 6.5Kg |
| Frequency Range | According to jammer frequency |
| Gain | 16±1dBi |
| VSWR | ≤1.5 |
| Polarization | Vertical |
| Horizontal Beam-width(0º) | 100±5º |
| Vertical Beam-width(0º) | 15±3º |
| Front-to-back ratio(dB) | ≥25 |
| Input Impedance(Ω) | 50Ω |
| Maximum input power(W) | 100W |
| Input connector type | 4 ports N/F |
| Lightning Protection | DC Ground |
| Rated Wind Velocity(m/s) | 60m/s |
| Operational Humidity(％) | 10- 95 |
| Ra-dome Color | Gray Color |
| Ra-dome material | UPVC |
| Operating temperature(ºC) | -30～85 º |
| Installation Method | Pole Mount |
| Mounting hardware(mm) | ￠40～￠80 |
| Mechanical tilt(º) | 0-10º |
Product Analysis
| 6 |  | 120cm high gain 16dBi antenna | 4pcs (360 degree coverage )
(outside the cabinet ) |
| 7 |  | 1/2 Ultra flexible coaxial cable | 32 meters (outside the cabinet ) |
| 8 |  | Huawei Thunder Protection Box /SPM60A | 1 pcs (outside the cabinet ) |
| 9 |
| Waterproof Insulation Tape | 2 pcs (outside the cabinet ) |
| 10 | 2/3/4 Way Optional | Power Sp-litters | 3pcs (outside the cabinet ) |
Package
* Durable 5 layer K=K Kraft paper carton with protection foam and
outer
fumigation wooden case for Jammer Cabinet
* Durable 5 layer K=K kraft paper carton with protection foam
Customized Option
* Frequency band and quantity
* Logo service
* Outshape design and mold
* Software engineering
Service
* Two year warranty and Life-time technical support
* Direct discussion with the mechanical and software engineer team
* Compatible with your current security system
* We can offer the installation photo, video or online training
free of charge
* We can offer the local installation service with extra cost
* We can offer the upgrade service for hardware and software
