16dBi High Gain Directional Antenna for Length 90CM 120CM 150CM

Electrical Specification

Gain	16±1dBi
VSWR	≤1.5
Polarization	Vertical
Horizontal Beamwidth(0º)	100±5º
Vertical Beamwidth(0º)	15±3º
Front-to-back ratio(dB)	≥25
Input Impedance(Ω)	50Ω
Maximum input power	300W
Input connector type: Input connector ports:	N Female Quantity Customized
Lightning Protection	DC Ground

Mechanical Specifications
Dimensionsmm(Height/Width/Depth)	1504212.5cm (Can choose length 90CM, 120CM, 150CM depends on specific need )
Packing size(mm)	1605520cm
Antenna weight(kg)	8.5Kg
Rated Wind Velocity(m/s)	60m/s
Operational Humidity(％)	10- 95
Radome Color	Gray Color
Radome material	UPVC
Operating temperature(ºC)	-30～75 º
Installution Method	Pole Mount
Mounting hardware(mm)	￠40～￠80
Mechanical tilt(º)	0-10º

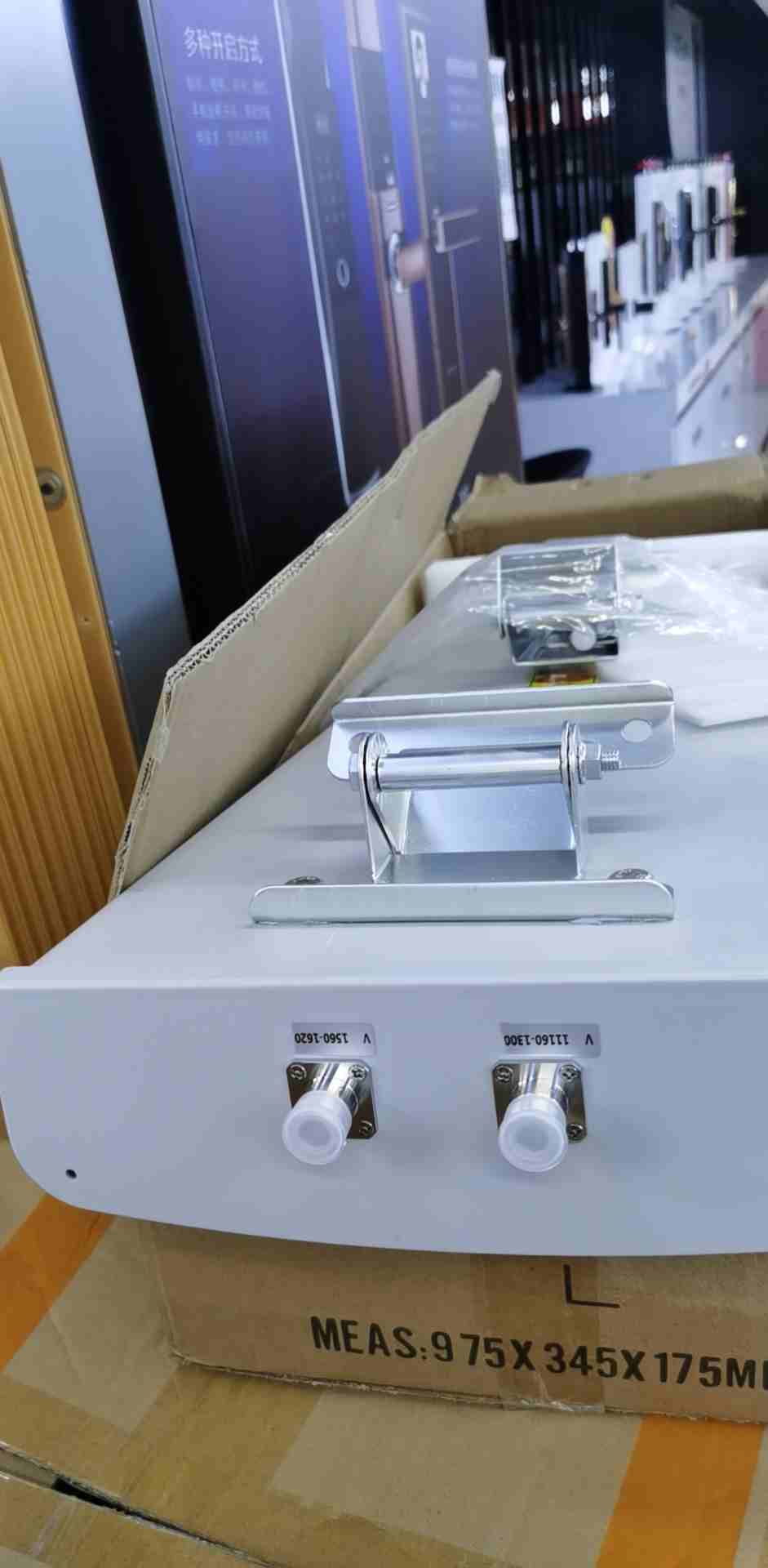

Real Photo Display

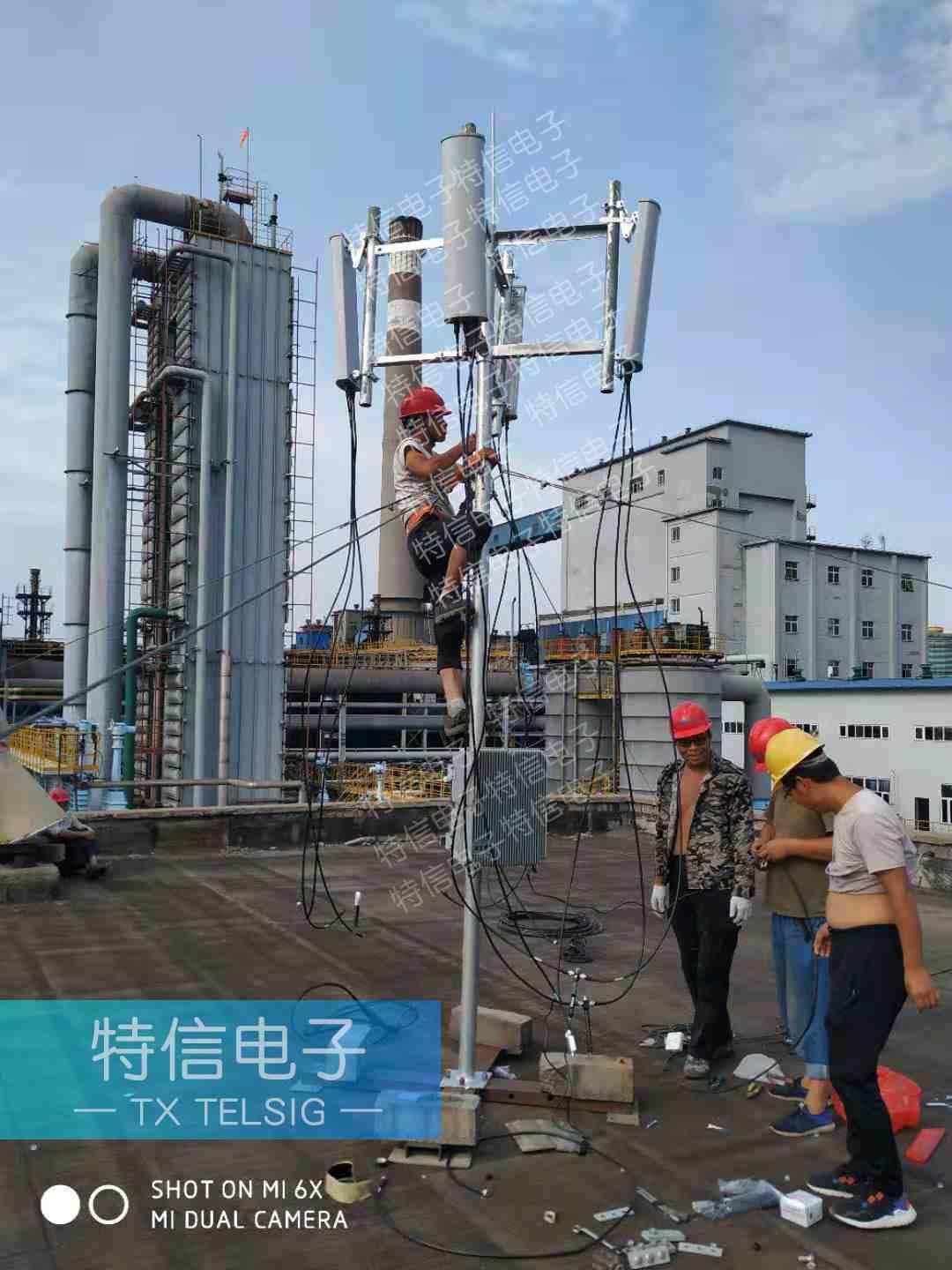

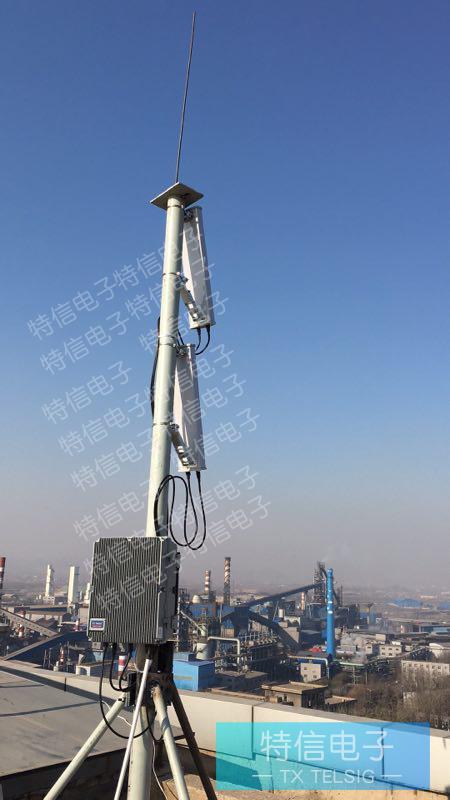

Installation Photo Display

--Antenna for signal Jammer Use
