    omni fiberglass with spring 3dbi antenna 428-438MHz long range operate waterproof

    Ask Lasest Price
    Brand Name : TX TELSIG
    Model Number : LY-4243-3Q55VBLG
    Certification : SGS, ISO9001
    Price : Negotiated
    Payment Terms : T/T, Paypal, Alibaba,etc.
    Supply Ability : 100000
    Delivery Time : 2 Days
    • Product Details
    • Company Profile

    omni fiberglass with spring 3dbi antenna 428-438MHz long range operate waterproof

    omni fiberglass with spring 3dbi antenna 428-438MHz long range operate waterproof

    This antenna is 360 degree operate full covery for the outdoors ,the antenna using fiberglass material and the bottom designed spring that has strong anti shock features when it installed in car .

    This antenna is equipped with lightning protection,takes DC Ground method ,so that under badly environment the antenna also can keep high efficiency to operate .

    This antenna support customized ,we offer 50W 100 W 400MHz 500MHz 600MHz .Our product diversified to meet your needs.Tell us what you need and we will make it happen for you .

    Features:
    * Waterproof and lightning protection of antenna
    * The VSWR protion under 2

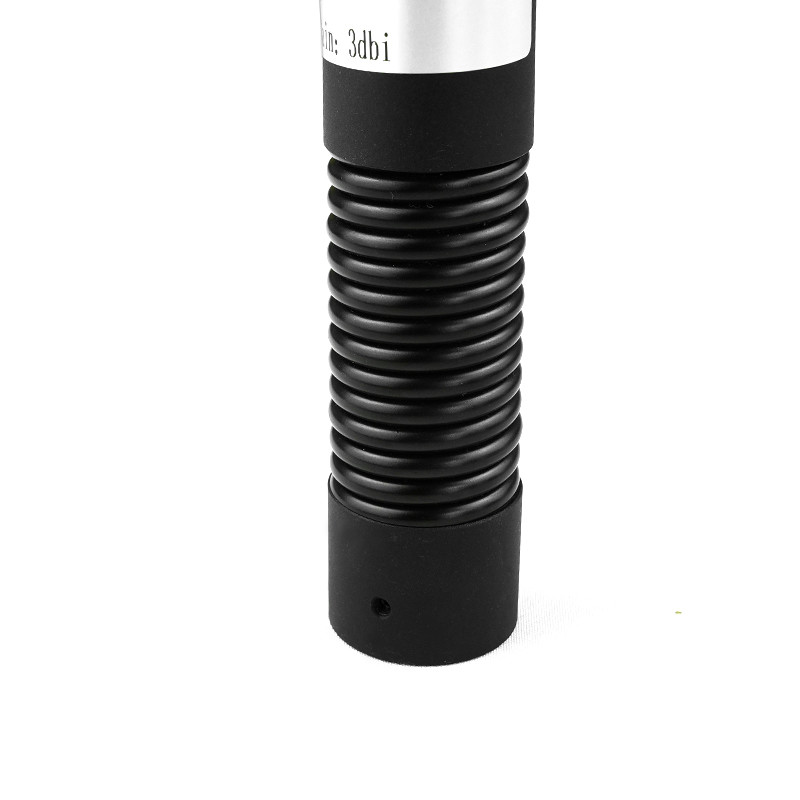

    * The bottom designed spring to anti shock
    * Light weight and easy to instll
    *ODM&OEM support customized
    *Full range emit signal
    *The antenna inner takes high quailty copper material ,can enhance product performance
    Electrical Specifications
    FrequencyRange428-438MHz
    Gain(dBi)3±0.5dBi
    VSWR≤1.5
    PolarizationVirtical

    Horizontal Beamwidth(0º)

    Vertical Beamwidth(0º)

    360º

    55±5º

    ovality(dB)≤±2dB
    Input Impedance(Ω)50Ω
    Maximum input power(W)50W

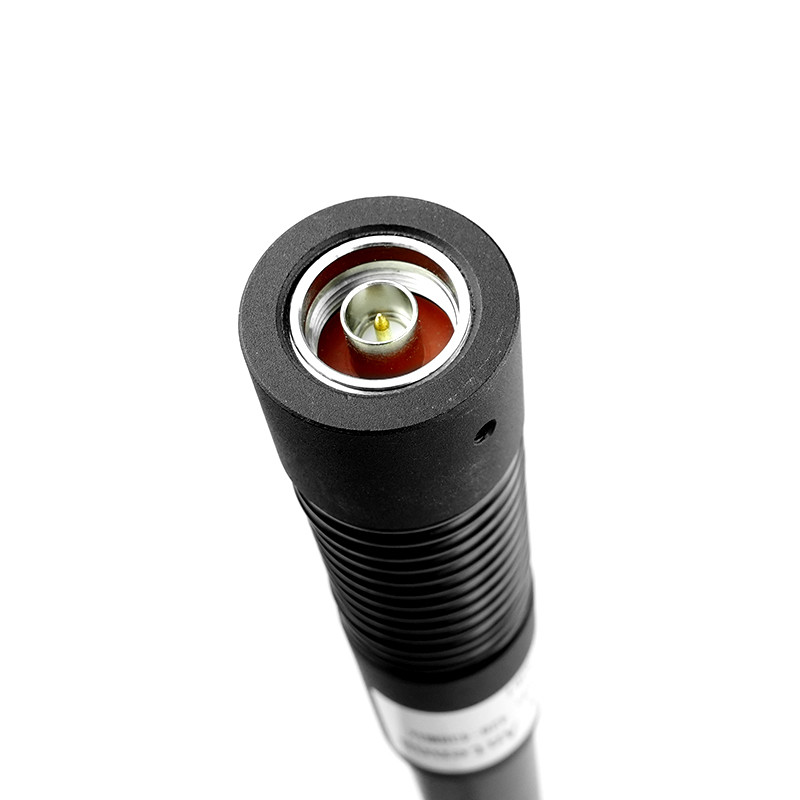

    Inpur connector typeN-K
    Lightning ProtectionDC Ground
    Mechanical Specifications
    Dimensions­mm(Height/Width/Depth)ɸ25*450mm
    Packing size(mm)470*350*220mm(50PCS)
    Antenna weight(kg)0.45KG
    Rated Wind Velocity(m/s)60m/s
    Operational Humidity(%)10- 95
    Radome ColorBlack
    Radome materialfirbglass
    Operating temperature(ºC)-40~55 º
    Installution Methodmachine mount
    Details photo:
    omni fiberglass with spring 3dbi antenna 428-438MHz long range operate waterproofomni fiberglass with spring 3dbi antenna 428-438MHz long range operate waterproofomni fiberglass with spring 3dbi antenna 428-438MHz long range operate waterproofomni fiberglass with spring 3dbi antenna 428-438MHz long range operate waterproofomni fiberglass with spring 3dbi antenna 428-438MHz long range operate waterproof

    Packing

    omni fiberglass with spring 3dbi antenna 428-438MHz long range operate waterproof


    omni fiberglass with spring 3dbi antenna 428-438MHz long range operate waterproof


    Application

    omni fiberglass with spring 3dbi antenna 428-438MHz long range operate waterproof

    omni fiberglass with spring 3dbi antenna 428-438MHz long range operate waterproof

    omni fiberglass with spring 3dbi antenna 428-438MHz long range operate waterproof

    omni fiberglass with spring 3dbi antenna 428-438MHz long range operate waterproof
