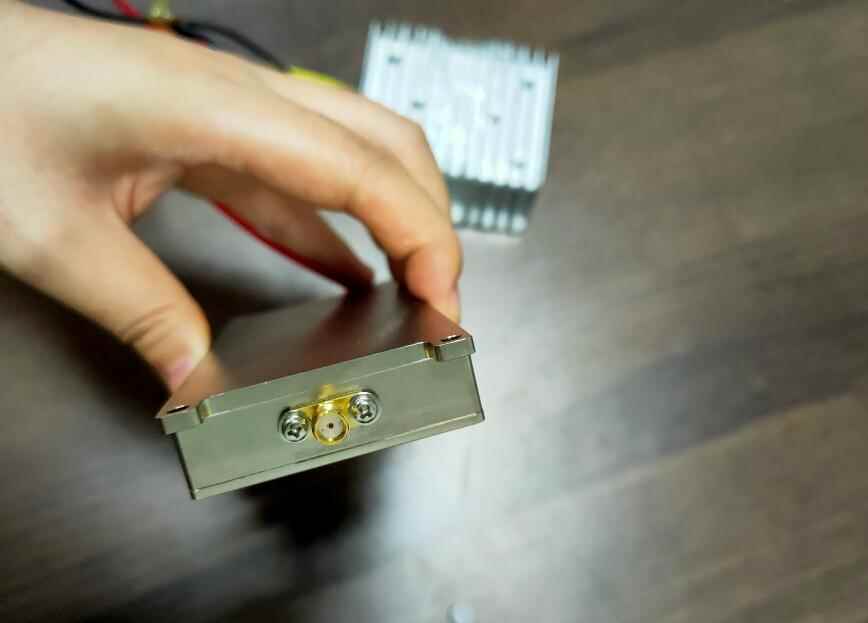

Customized 5.8GHz 5W 10W 20W 30W 40W 50W Jammer RF Module for Power Amplifier

The 5.8ghz PA RF module we always have different output power
choices : 5W 10W 20W 40W 50W

Price is different for each power

All the parameters of PA can be customized depend on your request,

If you have any customized parameters pls contact us freely.

5725-5850MHz 50W RF Power Amplifier Specification
No.	Item	Data	Unit	Note
1	Frequency	5725-5850	MHZ
2	Work Temperature	-10~+75	℃
3	Output Power	50	W
4	Work Voltage	DC24	V
5	Max Gain	50±1.5	dB
6	Flatness	±3	dB
7	Max Current	4.8	A
8	Output VSWR	≤1.5
9	Output Connector	N/F 50Ω
10	Power Amplifier Efficiency	41.6		When Max Output
11	Switch Control	high low level current	V	0V off /0.6 on
12	Standing Wave Protection	OK
13	Temperature Protection	75°	℃
14	Size (not including heat-dissipation fin)	200X110X23.5	mm
15	Size (not including heat-dissipation fin)	about 1.5	Kg
