| Brand Name : | TX TELSIG |
| Model Number : | TX-RF100 |
| Certification : | CE FCC ROHS iso9001 SGS |
| Price : | Negotiated |
| Payment Terms : | T/T,Paypal, Etc. |
| Supply Ability : | 10,000pcs/month |

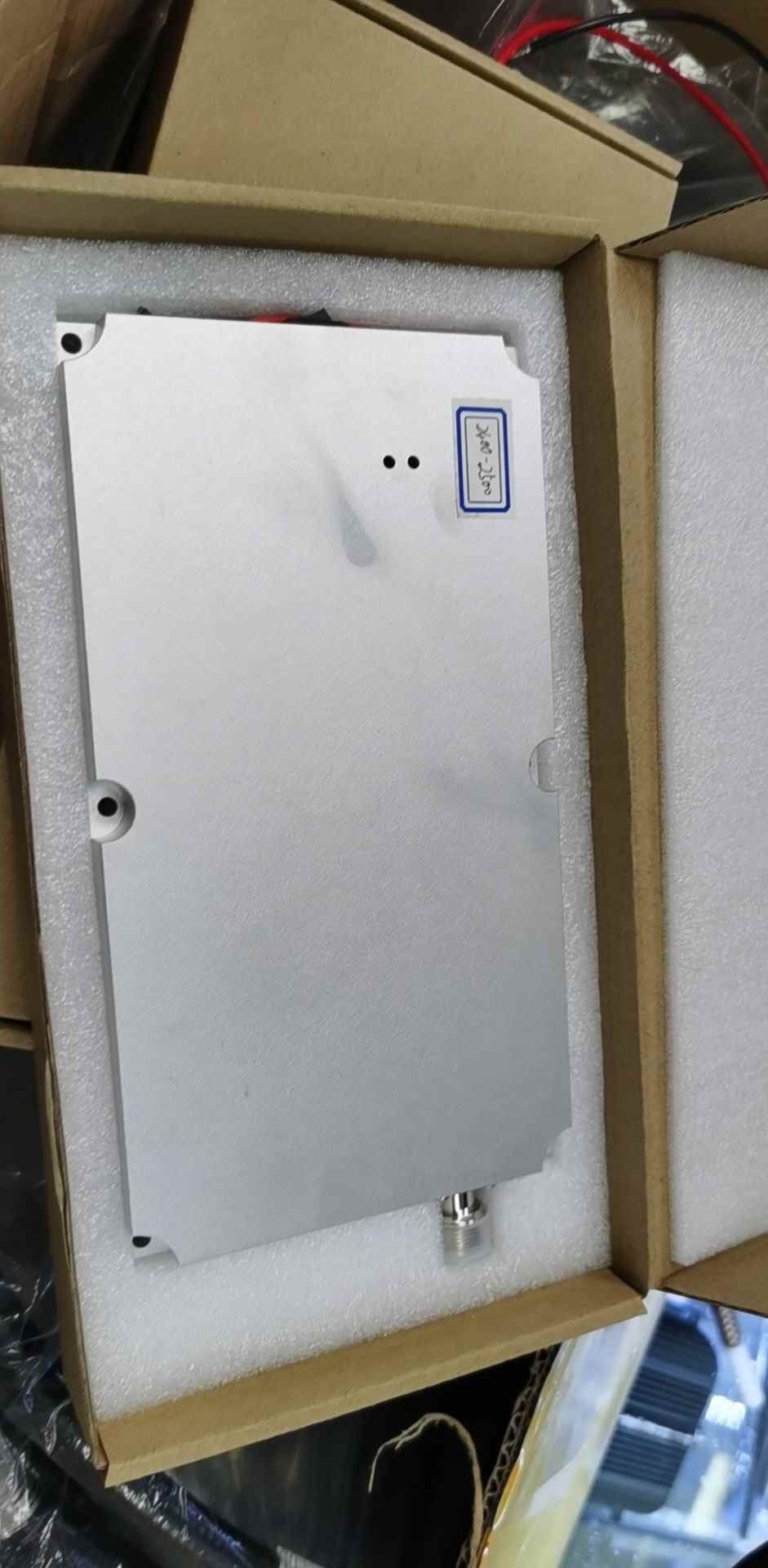

Customized 100W 200W RF Jammer Module For Different Frequency
| No. | Item | Data | Unit | Note |
| 1 | Frequency | CDMA/GSM850 :850-894 GSM900 :925-960 GSM/DCS1800 :1805-1880 3G/UMTS2100 :2110-2170 4GLte700 :790-826 4G/WiMAX2600 :2620-2690 WIFI2.4G:2400-2485 4G2500 :2500-2570 GPSL1:1570-1610 GPSL2:1200-1300 GPSL3:1380-1400 Wi-Fi5.8GHz:5725-5850 VHF:135-174 UHF:400-470 RC433 :433 RC315 :315 CDMA450 :450-470 | MHz | Customized Output Power 10W 20W 30W 40W 50W 100W 200W (We can do 5.8G jammer module 50W 40W ) |
| 2 | Work Temperature | -10~+75 | ℃ | |
| 3 | Max Output Power | 100 | W | |
| 4 | Work Voltage | DC24 | V | |
| 5 | Max Gain | 50±1 | dB | |
| 6 | Flatness | ±3 | dB | |
| 7 | Max Current | 10 | A | |
| 8 | Output VSWR | ≤1.5 | ||
| 9 | Output Connector | N/F 50Ω | ||
| 10 | Power Amplifier Efficiency | 43.8 | When Max Output | |
| 11 | Switch Control | High Low Level Current | V | 0V off /0.6 on |
| 12 | Standing Wave Protection | OK | ||
| 13 | Temperature Protection | 75° | ℃ | |
| 14 | Product Size | 220*115*25 | mm | Box size: 260*135*40 mm |
| 15 | Weight | 1.03 | Kg | with Box |





|
