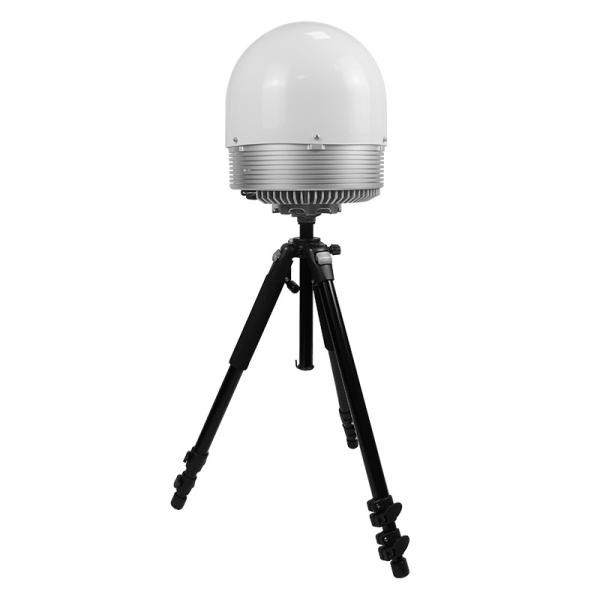

TX ultra-long-range 10KM full-band base station drone detection
Networkable Outdoor use
TX-JZTC01 is a wireless passive automatic detection system that
supports 360 degree omnidirectional detection coverage, with
advanced warning, black and white name recognition, ID recognition,
and linkage automatic strike support for UAV defense.
Adopting adaptive drone protocol control technology, deeply
analyzing drone signals, identifying the unique ID of each drone,
and accurately identifying drones. For some DJI models, the pilot
position and return point coordinates can be obtained.
Feature
1. Super strong detection distance over 10km
2. Intelligent management technology, can automatically add to the
whitelist and blacklist
3.Automatically strike after detection, capable of striking 200
aircraft at a time
4. High sensitivity, precise hitting, all-round protection
5. Ability to update equipment online and conduct in-depth analysis of
different types of drones to identify unique IDs
Specification
| Detection range | 10km(Good radio environment) |
| Detection frequency bands | 900Mhz,2.4Ghz,5.8Ghz |
| Accurate identification | Accurate identification of drone models and unique electronic
fingerprints, simultaneous identification of ≥ 220 different drone
brands and corresponding ID numbers (identity authentication), and
identification of drone positions and remote control positions
(some aircraft) |
| Detection angle | 360° |
| Direction finding accuracy(exclude DJI) | Hover 3 °, lateral flight 8-9 ° |
| Number of drones detected simultaneously | ≥60 |
| Position accuracy(DJI) | Positioning error<5 meters |
| Minimum detection altitude | ≤0meter |
| Detection success rate | ≥99% |
| Weight | 12kg |
| Volume | 330mm x 330mm x 330mm |
| Protection grade | IP65 |
| power dissipation | 80w |
Application
1.Outdoors safety protection ,when the outdoors working the detection
can locate the drone
2.Urban security management that preventing foreign drones from
endangering the safety of urban populations
3.Airport Security :Preventing foreign drones from interfering with
aircraft routes
Packing list :
Hobit S1 Host
Antenna x1
Screwsx4,Support fixed connectors
Gps module x1
Power line x1
Network cable x1
