8 channel 40W adjustable signal jammer blocker for range 5-20 meter
indoor
omnidirectional 2G 3G 4G 5G Wifi GPS

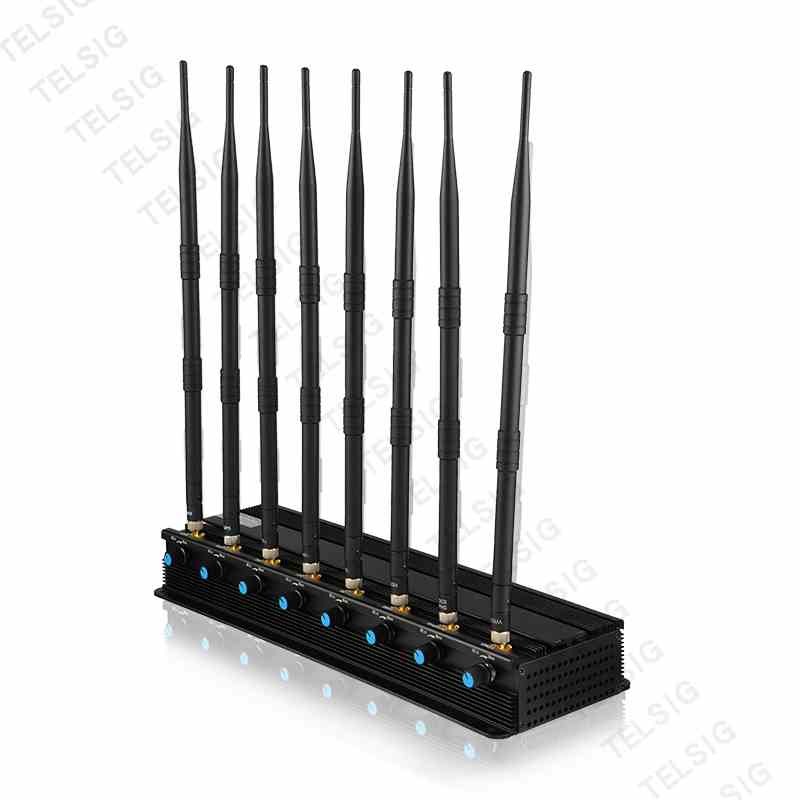

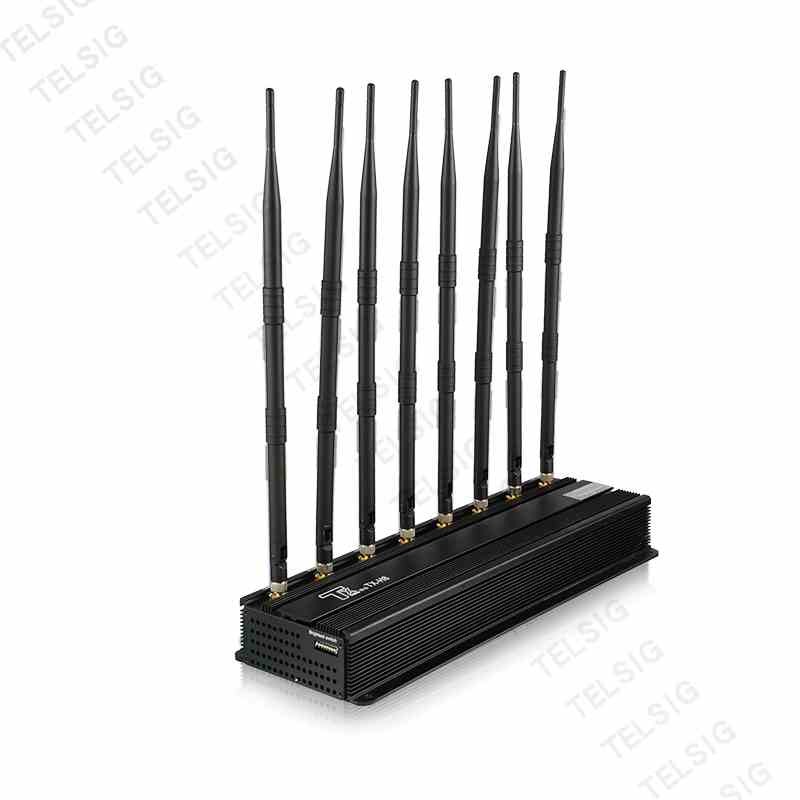

TX-H8K is a high gain signal jammer automatically blocking target signals
in a range of 5-20meter ;
including not limiting in 2G 3G 4G 5G Wifi GPS CDMA,GSM,DCS,PCS.
We also offer OEM or ODM project as required, please feel free send
your inquiry to us.
Feature
1. Easy to install and operate 8 (max to 16) channel desktop design
convenient for indoor or
designated place
2. High gain omni directional antenna to cut off signals quickly
3. All jamming channels can be turned on single or at same time
4. 24/7 non stop automatically working
5. Can be combined with computer monitoring system to monitor and
control real signal environment
6. Low heat cooling system offers a stable and long time nice
performance
7. It divide the spectrum to subsections and only break the
downlink signal and not influence the
Base station
Specifications
| Channel | Output port | Frequency range | Average out-putting power |
| 1 | CDMA | 851-894MHz | 39dBm/8W |
| 2 | GSM | 925-960MHz | 39dBm/8W |
| 3 | DCS or PCS | 1805-1880 or | 38dBm/6W |
| 1920-1990MHz |
| 4 | 3G | 2110-2170MHz | 38dBm/6W |
| 5 | 4G1 LTE | 700-803 or | 37dBm/5W |
| 790-862MHz |
| 6 | 4G LTE1700 | 1700-1800MHz | 37dBm/5W |
| 7 | 4G Wimax | 2500-2690 | 36dBm/4W |
| or 2300-2400MHz |
| 8 | WIFI2.4G | 2400-2500MHz | 36dBm/4W |
| 9 | GPS1.5G | 1570-1580 MHz | 32dBm/2W |
| Power supply: AC adapter 50 to 60Hz, (110-240V AC-24V DC) |
| Dimensions: 370*140*51mm |
| Weight: 3.0KG |
| Total power:40W |
| Shielding radius: 5-20 meter (depends on signal environment ) |
| Warranty: one year from delivery date |
Application
Such as Galleries, Church, Training centre , temple, bank, factory,
transportation, airports, military
police,VIP Convoy, law enforcement, important events, plant
protection, agriculture etc.
