360 Degree 1000 meter Radius Drone Signal Jammer Anti Drone System
* This drone signal jammer can protect about 1000 meter radius area
from drone invading, no blind corner
* The multiple devices from different positions can be monitored at
same computer if they are on same IP address
* Working principle: it works by interfering the remote control
signal between the drone and its ground control
Product Function

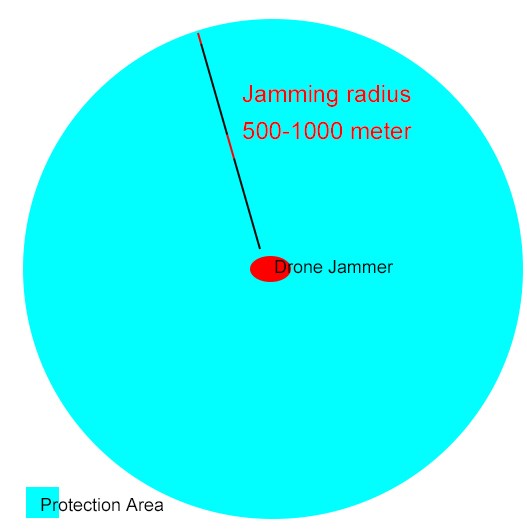

* When you install the drone jammer in a position, the drone can
not invade into this area in effective range
about 1000 meter radius. As below photo.
* And the drone will be force to return home or land slowly
(depends on the drone controller setting) once it try to enter the
effective jamming area.
Product Feature
* Outdoor use IP65 level waterproof
* Shock proof, Heat resistant, Thunder protection
* Long range protection: 500-1000 meter radius(depends on real environment)
* High integration single modulation for easy maintenance
* High gain 360 degree coverage fiberglass antenna
* Computer monitoring for multiple device at same time
* Target: most commercial drones in market
Product Specification
Jamming Frequency
&
Output Power | Band1: Wi-Fi 2.4GHz : 2400-2485 MHz, Output power 120W |
Band2: Wi-Fi 2.4GHz : 2400-2485MHz, Output power 30W |
Band3: Wi-Fi 5.8GHz : 5725-5850 MHz,Output power 50W |
Band4: Wi-Fi 5.8GHz : 5725-5850 MHz,Output power 30W Other customized options includes the GPS, Mobile Phone, VHF,UHF,
Lojack, etc. |
| Jamming Principle | Remote Control Signal Interference |
| Jamming Range | 500-1000 meter radius, depends on real environment |
| Working Time | 24 hours 7 day continuously |
| Water&Dust Proof Level | IP65 level |
| Out shell Material | Die Cast Aluminum Alloy |
| Product Size | 50*45*25cm |
| Product Weight | 32kg (not including antenna) |
| Output Power | 230 W |
| Power consumption | < 530 W |
| Power supply | AC Adapter 220-240V |
| Working temperature | -20 ° ~ +75 ° |
| Relative humidity | 35～95% |
| Installation | Wall Mount or Pole Holding |
| Suggest Installation Height | 3-15meter height, the higher the better jamming effect |
OMNI Directional Antenna 360 Degree Radiation Pattern
Product Application
Military, Prison, Government, Farm, Chemical factory, Oil Depot,
the places that needs protect themself
from drone photographing and invading
More details application place is as below :
> Government: Prison, Military, Police, Border Control, Government
Buildings, Detention Centre, Drug
rehabilitation centers, Other Law enforcement
> Critical Infrastructure: Chemical Industry,Oil Depot,Oil Refinery,
Gas Station Power generate plants
Nuclear power plants,Water control center, Reservoir
> Farm, Fish Pond, Dairy Farm, etc.
> Mass Event: Sports Stadium&Events, Important Meetings,
Entertainment Performance
> Museums, Campus,Theatre,Church,Hospital
> Scientific research center,Security Service,Test Facilities, etc.
Package List
2 packages
* Fumigation Wooden Case for jammer body (with pearl foam inside)
* K=K 5 layer kraft paper carton for antenna
(also include the waterproof tape, AC adapter, thunder protection
box)
Customer Service
* One year warranty and Life time technical support
* Direct discussion with the mechanical and software engineer team
* Compatible with your current security system
* We can offer the installation photo, video or online training
free of charg
* Local installation service
* We can offer the upgrade service for hardware and software
